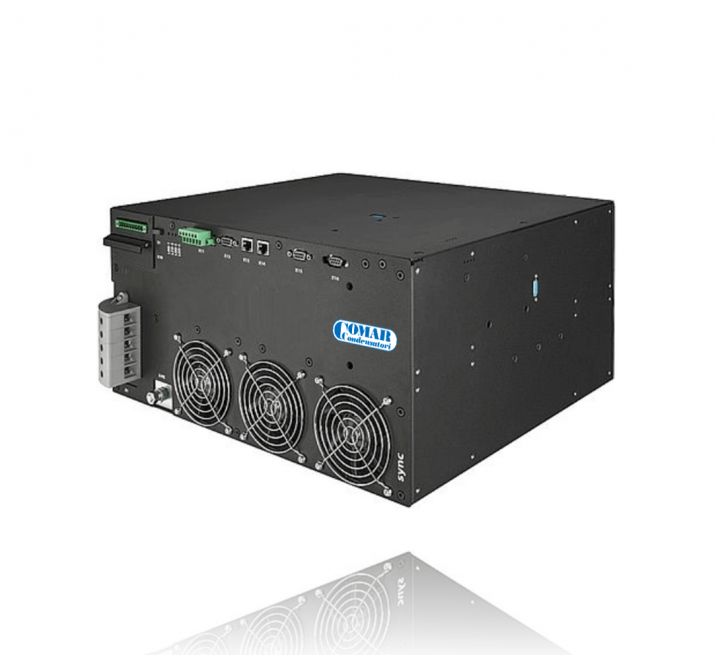

SAF-M

The new series of SAF-M active filters represents the ideal solution to compensate for the most demanding harmonic currents, with any type of non-linear load involved, and have a modular design specifically designed for easy cabinet assembly and application flexibility.

Request information for this product

Description

PERFORMANCE DATA

Mains voltage
3-wire: 380 – 480 Vac
4-wire: 380 – 415 Vac
Rated frequency 50Hz / 60Hz
Inverter topology 3-level NPC topology, IGBT
Switching frequency 16 kHz
Response time <100 μs
Compensated harmonic currents
Up To the 50th harmonic (even and odd harmonic orders)
Residual THDI (in current) < 5%
Supply Three-phase, 3-wire or 4-wire
(tree-phase+neutral)
Max. rated phase / neutral conductor mitigation current 60 Arms / 180 Apk
