RFIX

prodotto

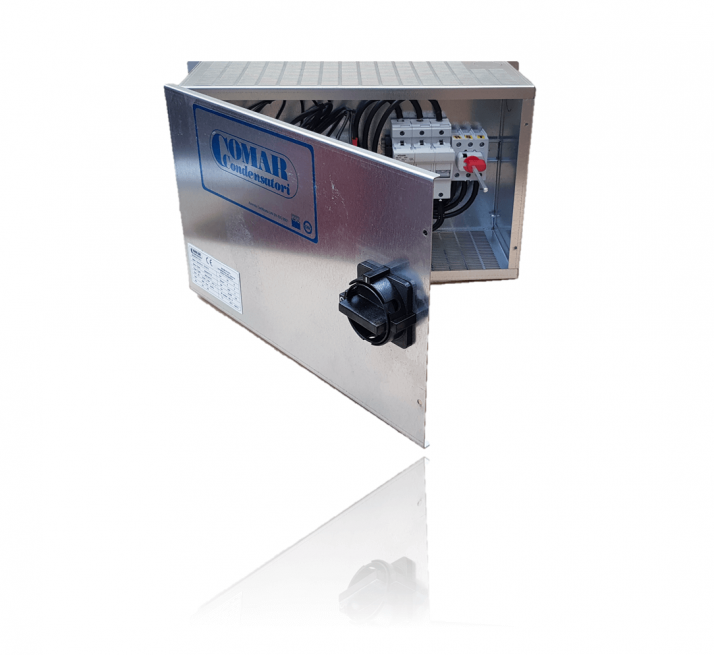

The RFIX series is the new solution developed for fixed power
factor correction. The compact design makes it easy to locate
and install. A second version equipped with a protection device is
also available.

Request information for this product

Description

PERFORMANCE DATA

Rated voltage 415 Vac (others on request)
Max. voltage on capacitors (without harmonics)
450 Vac for RFIX-B15 series;
550 Vac for RFIX-B50 series
Rated frequency 50 Hz (60 Hz on request)
Insulation voltage 690 Vac
Overvoltage 1,1 Un (rated voltage)
Capacitance tolerance -5% / +10%
Discharge resistor 75V residual within 3 minutes (included)

QUALITY AND TESTING

Regulations IEC/EN 60831-1 / 2, IEC/EN 61921
