RCM

prodotto

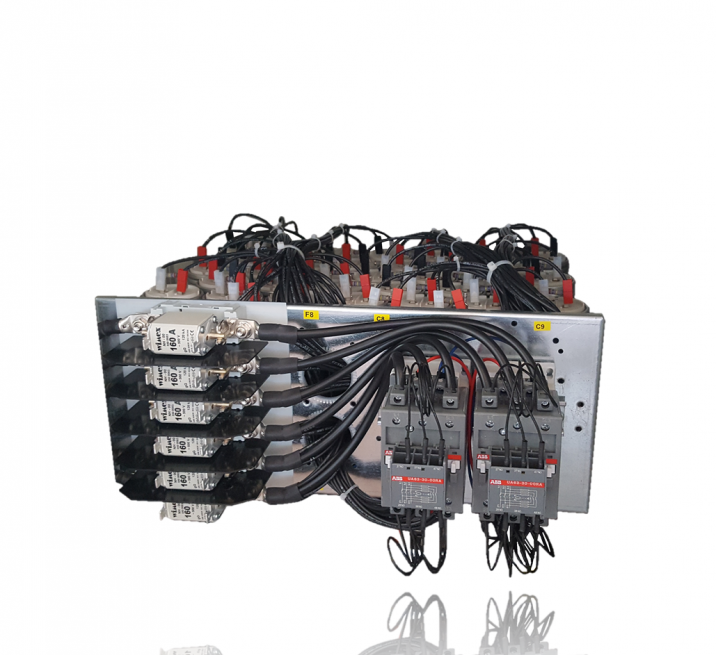

The RCM series capacitor racks are designed for our G6E and G8E type cabinets. Inside each rack are assembled single-phase
capacitor terns. In the case of a high level of harmonic current
distortion, versions with blocking reactors (AAR / … series) are
available.

Request information for this product

Description

PERFORMANCE DATA

Capacitance tolerance -5% / +10
Rated frequency 50Hz
Supply Three-phase + ground
Max. allowable voltage 1,1 Un (max. 8 /24 h)
Safety device Overpressure disconnector
Auxiliary circuits 230 Vac (110 Vac on request)

HARMONIC CONTENT (in absence of resonance)

RCM-B15: THD(I)max. = 15% on the network
RCM-B35: THD(I)max. = 25% on the network
RCM-B50: THD(I)max. = 35% on the network
RCM-AAR/… THD(I)max. = 100% on the network
