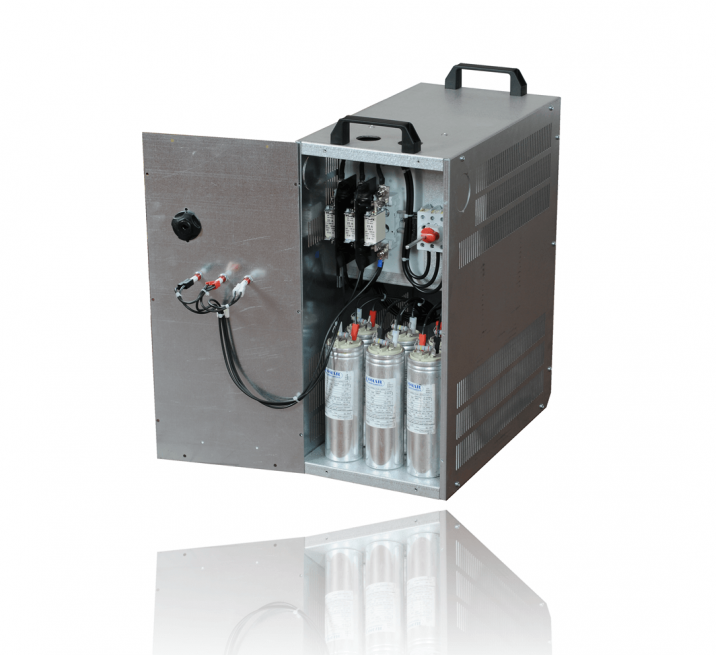

GS-CS
The GS and CS series are specifically designed for fixed power
factor correction in applications such as compensation for noload
transformers, fixed power factor correction of constant
consumption. When electrical systems are affected by harmonics,
CS series with blocking reactors is strongly recommended.
Description
PERFORMANCE DATA
Rated voltage 415 Vac (others on request)
Max. voltage on capacitors (without harmonics)
450 Vac for GS-B15 series;
550 Vac for GS-B50 series;
550 Vac for CS series
Rated frequency 50 Hz (60 Hz on request)
Insulation voltage 690 Vac
Overvoltage 1,1 Un (rated voltage)
Capacitance tolerance -5% / +10%
Discharge resistor 75V residual within 3 minutes
(included)
QUALITY AND TESTING
Regulations IEC/EN 60831-1 / 2, IEC/EN 61921
