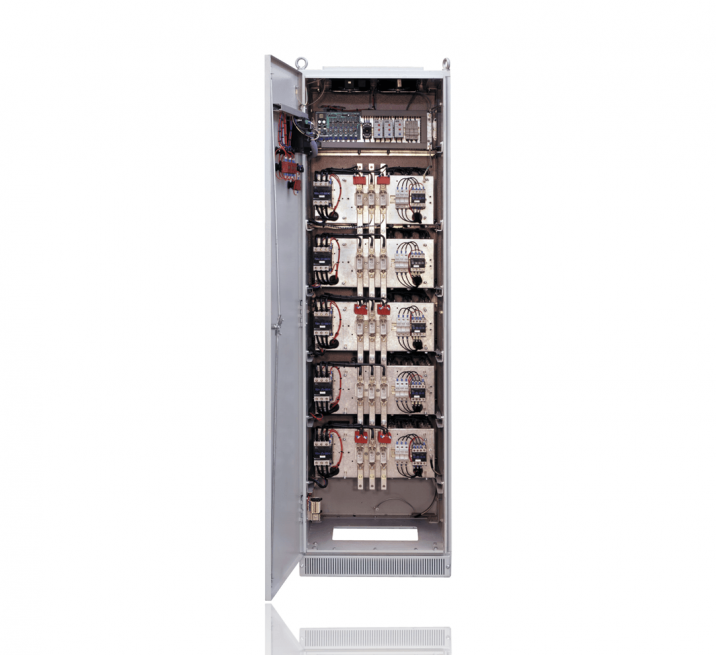

FAM05
FAM05 is realized by appropriately tuning in frequency, a battery
of capacitors and a three-phase reactance. In this way a resonant
circuit is realized which is chosen as the preferred way from the
harmonic current which is to be reduced, and is equipped with a
microprocessor control system for inserting modules. Features:
• consisting of standard racks of equal dimensions connected to
each other
• Easily increases the size of the filter
• prevents the insertion of filter groups L-C, having too high
reactive power, bring the power factor of the load to a capacitive
cosφ, with possible consequent problems of DC drives.
Description
PERFORMANCE DATA
Rated voltage 400 Vac (others on request)
Rated frequency 50 Hz (60 Hz on request)
Insulation voltage 690 Vac
auxiliary voltage 230 Vac
Overvoltage 1,1 Un (rated voltage)
Temperature range -5 / +40 °C
Impulse withstand 8 kV
TUNED FILTER
5° grade Harmonic
