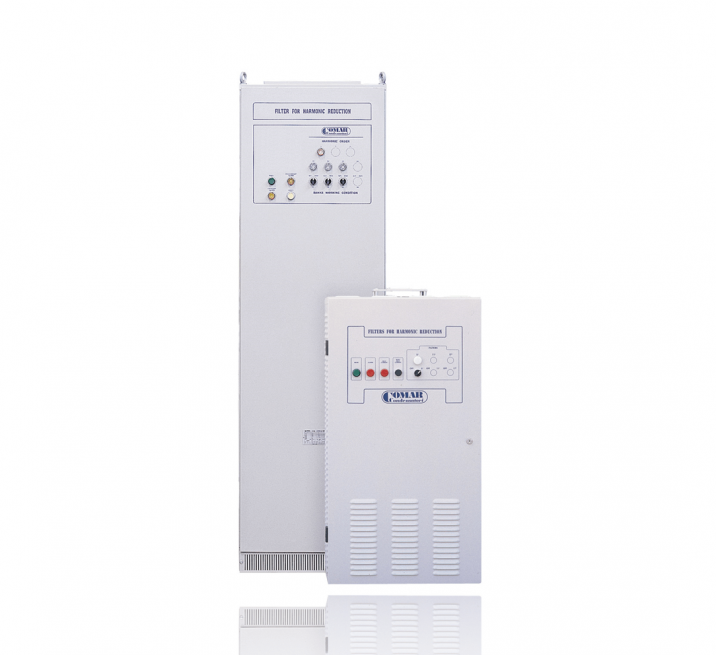

FA05
FA05 series is specially designed for the knock down of current
harmonics generated by U.P.S, in industrial applications. The
passive filter is realized by tuning in frequency a capacitor bank
and a three-phase reactance. In this way there is a resonant
circuit which is chosen as the preferential way from the harmonic
current which is to be reduced: in fact, the filter has a sufficiently
low impedance value only at the frequency value to which it is
tuned.
Description
PERFORMANCE DATA
Rated voltage 400 Vac (others on request)
Rated frequency 50 Hz (60 Hz on request)
Insulation voltage 690 Vac
auxiliary voltage 230 Vac (110 Vac on request)
Overvoltage 1,1 Un (rated voltage)
Temperature range -5 / +40 °C
Impulse withstand 8 kV
TUNED FILTER
5° grade Harmonic
