DMP-FTV

prodotto

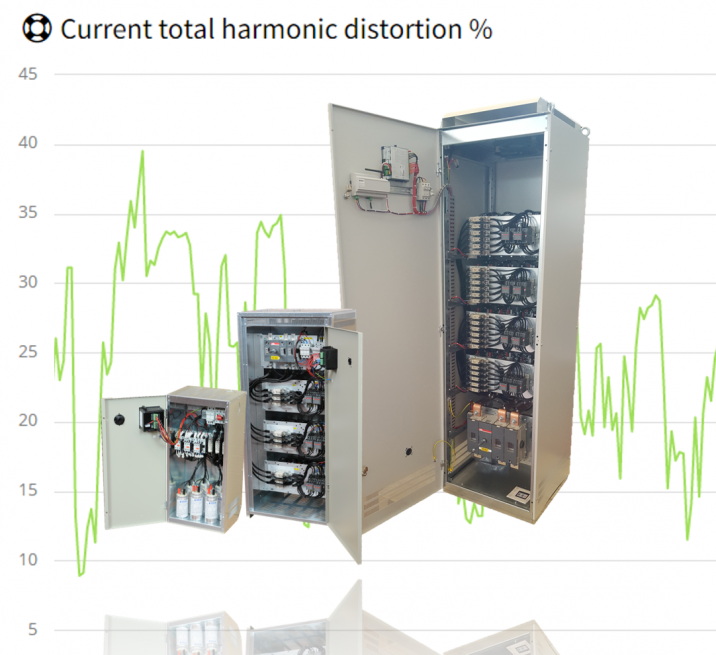

DMP-FTV series equipment are particularly suitable for threephase
networks with operating voltage equal to 400 Vac (+/-
10%) with medium-high harmonic distortion in current. These
equipment guarantee an accurate P.F.C., thanks to a multi-step
design that effectively divides the power. In addition, on the G6E
and G8E cabinet, all the capacitors banks are assembled on racks,
easily removable from the front of the panel, for simple
management and maintenance.

Request information for this product

Description

PERFORMANCE DATA

Rated voltage 415 Vac (others on request)
Rated frequency 50 Hz (60 Hz on request)
Insulation voltage 690 Vac
auxiliary voltage
400 Vac forG3E, G4E, G4RM¹
230 Vac for G4RM² , G6E, G8E
Overvoltage 1,1 Un (rated voltage)
Temperature range -5 / +40 °C
Impulse withstand
kV (G3E, G4E);
8 kV (G4RM, G6E, G8E)

¹up to 200 kvar. ²over 200 kvar. Auxiliary voltage is supplied by a proper transformer.

HARMONIC CONTENT (in the absence of resonance)

THD(I)max. = 40% on the network
THD(U)max. = 11% on the network
THD(Ic)max. = 90% on the capacitors
