GE230V

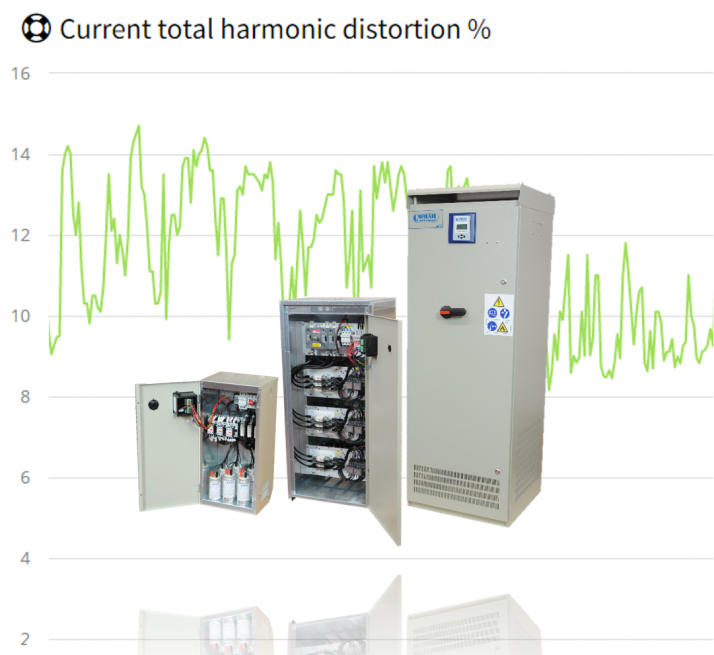

GE 230V series power factor correction panels are suitable for
three-phase 230V networks with low harmonic current content.
These devices guarantee accurate power factor correction,
thanks to a multi-step logic that effectively fractionates the
power.
Description
PERFORMANCE DATA
Rated voltage 230 Vac (others on request)
Rated frequency 50 Hz (60 Hz on request)
Insulation voltage 690 Vac
Auxiliary voltage 230 Vac (110 Vac on request)
Overvoltage 1,1 Un (rated voltage)
Temperature range -5 / +40 °C
Impulse withstand
6 kV (G3E, G4E);
8 kV (G4RM, G6E)
HARMONIC CONTENT
(RESONANCE NOT ADMITTED)
THD(I)max. = 25% on the network
THD(Ic)max. = 70% on the capacitors
